Description

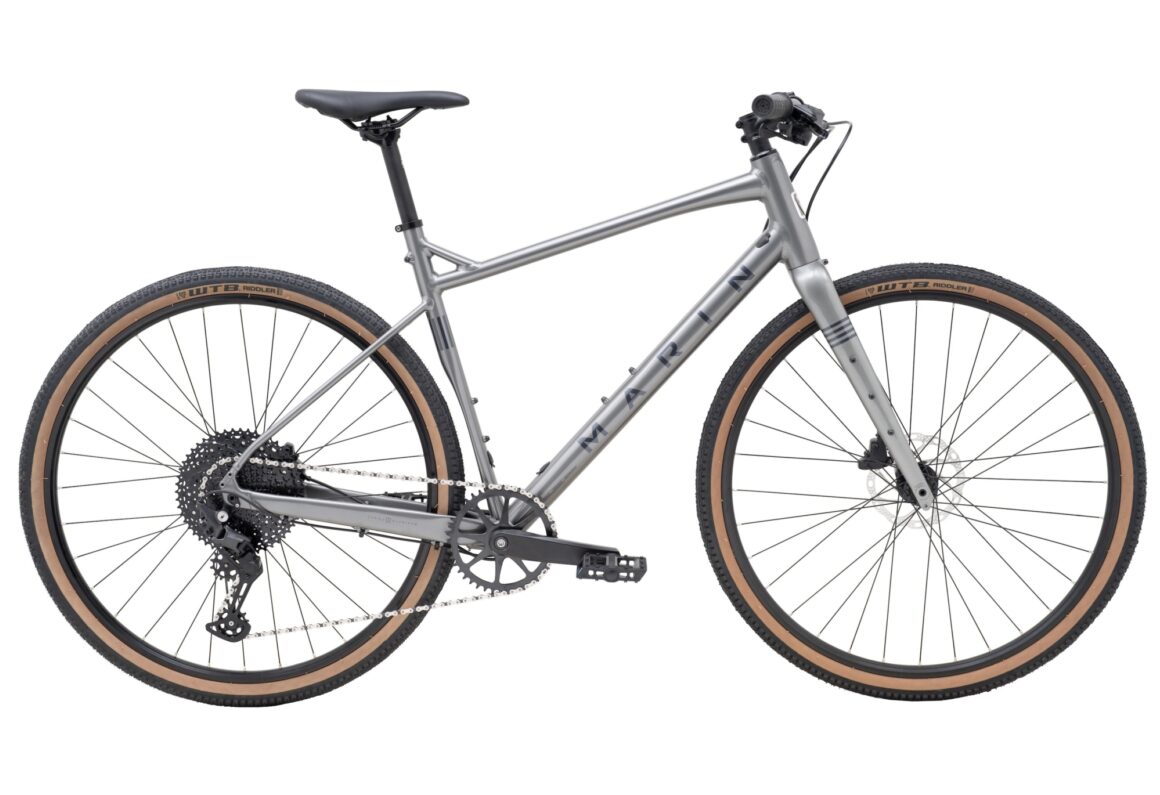

deore gravel bike Marin DSX 1 Grey Gravel Bike with Shimano Deore Drivetrain – United By CyclingLONG DISTANCE MIXED SURFACE COMMUTING GRAVEL RIDING ADVENTURE ON AND OFF ROAD RIDING Hopping up to a higher spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. Theres also an 11 speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable
LONG DISTANCE MIXED SURFACE COMMUTING
GRAVEL RIDING
ADVENTURE ON AND OFF-ROAD RIDING
Hopping up to a higher-spec Series 3 aluminum frame, the Marin DSX 1 has a whole heap of upgrades over the base spec version. Bolt-thru axles add stiffness and a carbon fork drops the weight and adds even more mounting points for bikepacking bags. There’s also an 11-speed 1X Shimano Deore drivetrain, WTB Riddler tires, Tektro hydraulic brakes and plenty of reliable Marin components.
Key upgrades from DSX:
- Series 3 aluminum frame w/thru axles
- Full carbon fiber fork
- Wide-range Shimano Deore 11-speed drivetrain
- Tektro hydraulic disc brakes
SPECIFICATIONS
-
FRAME
Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
-
FORK
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
-
RIM
Marin Aluminum Double Wall, 21mm Inner, Disc Specific
-
HUB REAR
Forged Aluminum Alloy, 142x12mm, Disc, 32H
-
HUB FRONT
Forged Aluminum, 100x12mm, Disc, 32H
-
SPOKES NIPPLES
14g Black Stainless Steel
-
TIRES
WTB Riddler, 700Cx45mm
-
DERAILLEUR REAR
Shimano Deore, RDM5100, 11-Speed
-
DERAILLEUR FRONT
-
-
SHIFT LEVER
Shimano Deore, SLM5100, 11-Speed
-
CRANKSET
Forged Aluminum, 42T Steel Narrow Wide Chainring
-
BOTTOM BRACKET
Sealed Cartridge
-
CHAIN
KMC X11
-
CASSETTE
Shimano, CSM5100, 11-Speed, 11-51T
-
BRAKES FRONT
Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
-
BRAKES REAR
Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
-
BRAKE LEVERS
Tektro Hydraulic
-
HANDLEBAR
Marin MiniRiser
-
STEM
Marin 3D Forged Alloy
-
GRIPS
Marin MTB
-
HEADSET
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
-
SEATPOST
Marin Alloy
-
SADDLE
Marin DSX
-
PEDALS
Marin Oso OEM Nylon Platform
-
EXTRAS
Bolt-On Thru-Axles F and R
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
| S | M | L | XL | |
|---|---|---|---|---|
| STACK | 544.4 | 572.5 | 600.6 | 628.7 |
| REACH | 380 | 405 | 420 | 435 |
| HEAD TUBE ANGLE | 69.5° | 69.5° | 69.5° | 69.5° |
| HEAD TUBE LENGTH | 120 | 150 | 180 | 210 |
| SEAT TUBE ANGLE | 74° | 74° | 74° | 74° |
| SEAT TUBE LENGTH | 430 | 480 | 520 | 558 |
| TOP TUBE EFFECTIVE | 536.1 | 569.2 | 592.2 | 615.3 |
| BB HEIGHT | 279.5 | 279.5 | 279.5 | 279.5 |
| BB DROP | 80 | 80 | 80 | 80 |
| CHAIN STAY | 425 | 425 | 425 | 425 |
| WHEEL BASE | 1024.42 | 1060 | 1085.4 | 1110.9 |
| STAND OVER HEIGHT | 658.76 | 700.51 | 730.39 | 758.5 |
| FORK OFFSET | 50 | 50 | 50 | 50 |
| SEATPOST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH | 640 | 680 | 680 | 680 |
| STEM LENGTH | 70 | 70 | 70 | 70 |
| CRANK LENGTH | 170 | 175 | 175 | 175 |
All lengths in millimeters
TECHNOLOGY
SERIES 3 FRAME
The DSX FS, 2, and 1 feature a butted and formed Series 3 6061 aluminum frame with internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
The DSX (base) model utilizes a Series 2 6061 aluminum frame with internal cable routing, and rack and fender eyelets.
TIRE CLEARANCE
The DSX comes stock with 700x45mm tires, with room for 29x2.1”
knobbies.
DISC BRAKES
The DSX features the latest flat mount disc brake standard
for smooth, controlled stopping in all conditions with minimal
maintenance.
DROPPER POST ROUTING
Dropper posts are quickly becoming standard fare for gravel racers
and riders that spend significant time on rough surfaces, and the
DSX features internal dropper post routing for easy upgrades.
